Hydraulic hose pipe

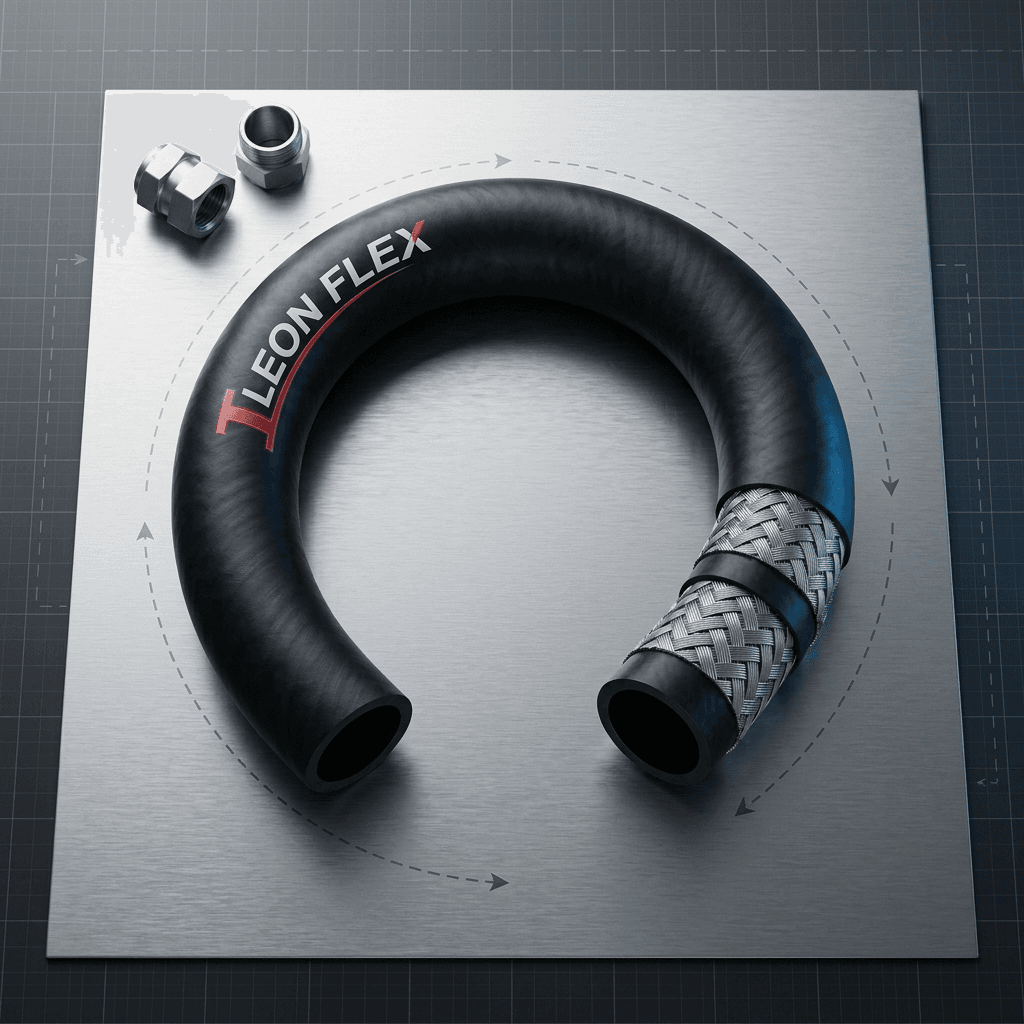

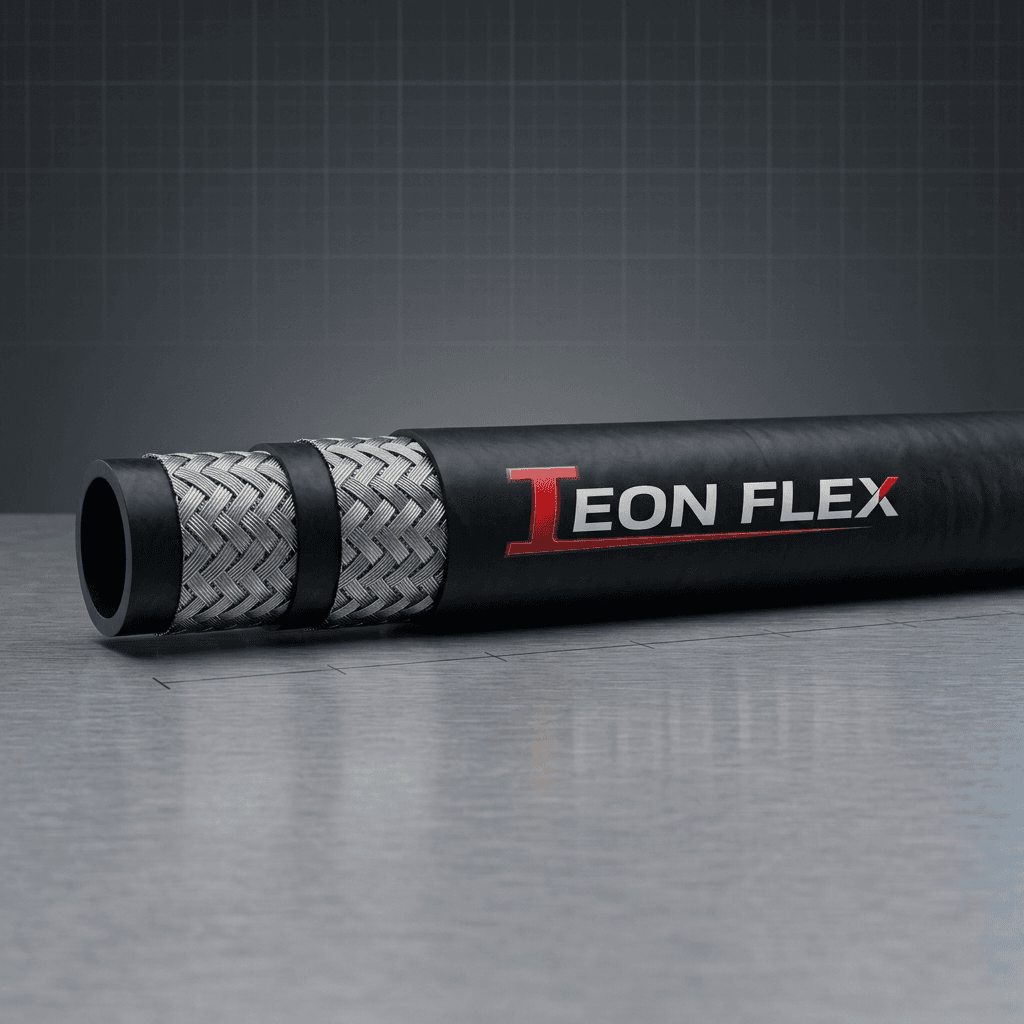

R2 Hydraulic Hose
Two-wire braid. Built for high-pressure lines on tractors, JCBs and industrial hydraulics.
W.P.
275 BAR
W.P.
4000 PSI
Range
DN 06—38
Select size
Made in India · Custom lengths · Dealer supply
- ⟩Two-wire braid for higher working pressure than R1
- ⟩Skived ends where the fitting requires it
- ⟩Ferrules crimped and pressure-checked in-house
- ⟩Lay-line printed with size and working pressure
- ⟩Custom lengths, angles and end connections
Specifications
| Size | DN | ID mm | OD mm | W.P. bar | W.P. psi | Burst bar | Bend r. mm |
|---|---|---|---|---|---|---|---|
| DN 06 | 6.4 | — | — | — | — | — | |
| DN 08 | 7.9 | — | — | — | — | — | |
| DN 10 | 9.5 | — | — | — | — | — | |
| DN 12 | 12.7 | — | 275 | 4000 | — | — | |
| DN 16 | 15.9 | — | — | — | — | — | |
| DN 20 | 19.0 | — | — | — | — | — | |
| DN 25 | 25.4 | — | — | — | — | — | |
| DN 31 | 31.8 | — | — | — | — | — | |
| DN 38 | 38.1 | — | — | — | — | — |
- Construction

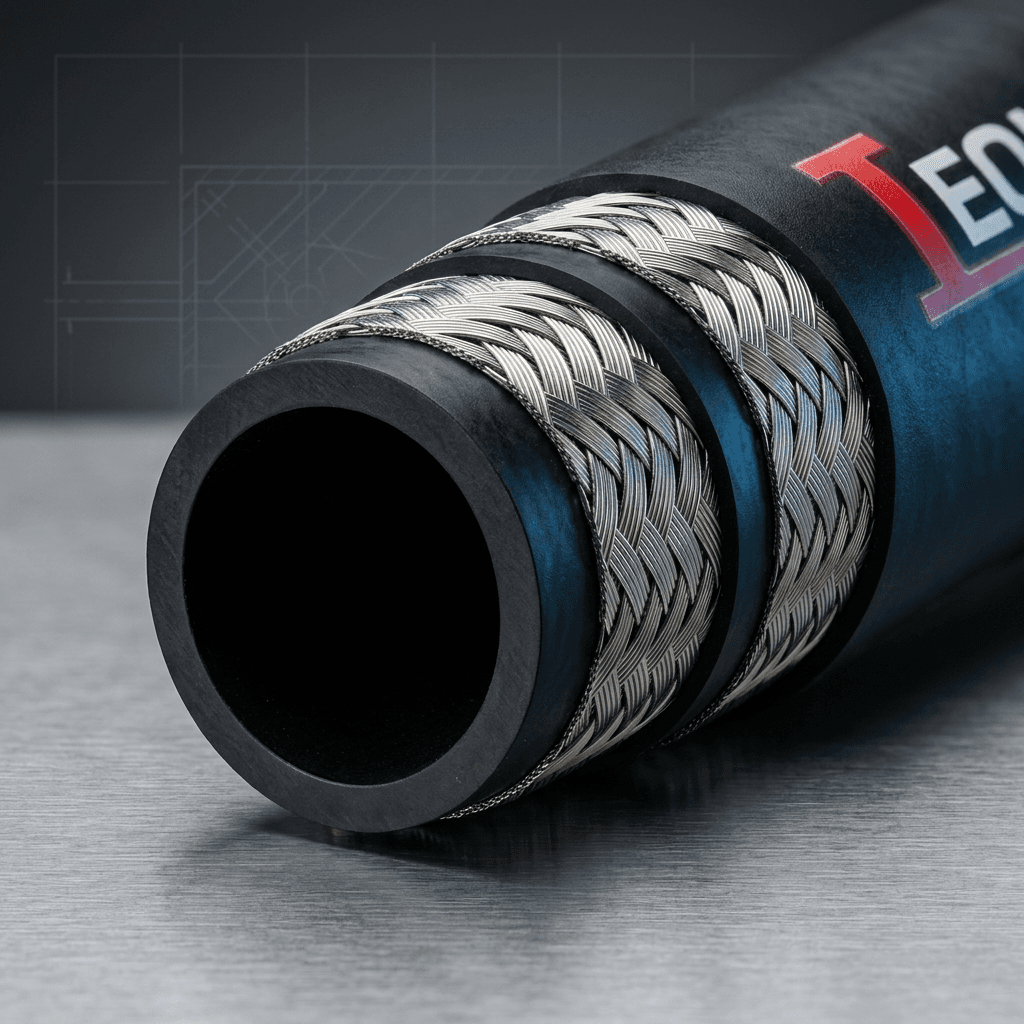

- Synthetic rubber tube, two high-tensile steel wire braids, weather-resistant cover.
- Temperature range
- —
- Standards
- —
Applications
- 01Tractors
- 02Trolleys
- 03JCB / earth-moving
- 04Industrial machinery
- 05Power steering
- 06Rock drilling
Made to order
Assemblies are built to your spec: hose length, hose size, fitting, thread type, end connection, angle and application.
- 01Hose roll
- 02Cutting
- 03Skiving
- 04Fitting installation
- 05Crimping
- 06Inspection
- 07Final assembly
